FEATURES & APPLICATIONS
Features
- Problem-solver for non-standard pipe configurations – including pipe elbows, inclined pipes and pipes with limited clearance to the wall
- Space-saver – zero distance to CFS-C EL firestop endless collar, Conlit and CFS-B firestop bandage
- Endless solution – one product for most penetrant sizes
- Installed outside of the base material – can be visually inspected easily
- Well-suited to complex pipe configurations
Applications

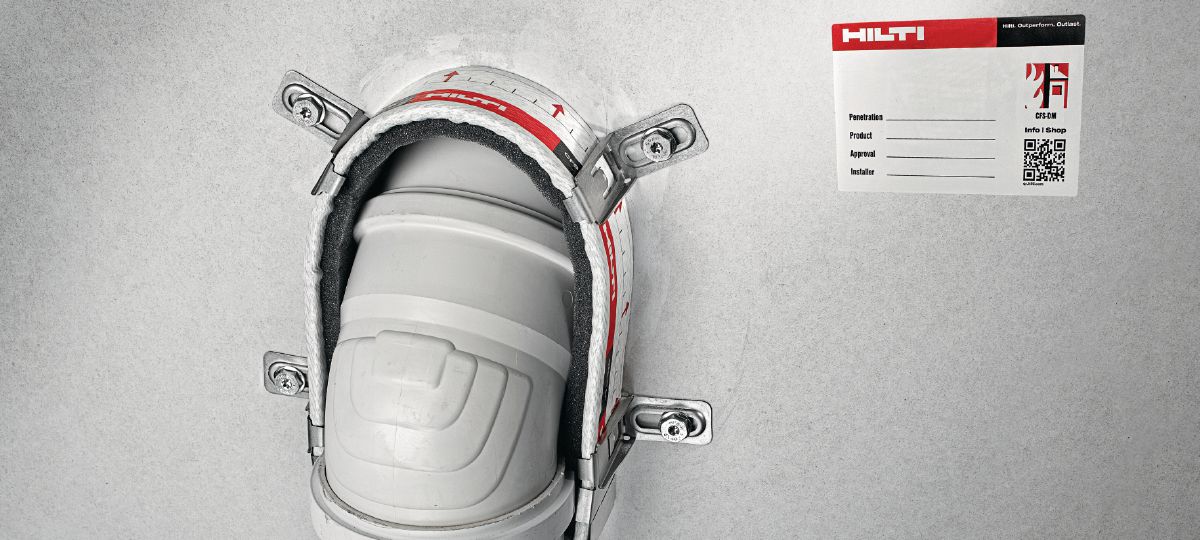

- Configurations tested include pipe elbows, inclined pipes and pipes with limited clearance to the wall
- Zero distance required to CFS-B firestop bandage, CFS-C EL firestop endless collar and Conlit
- Suitable for use on shaft walls, coated board, plasterboard, aerated concrete, masonry and concrete
- Approved for use with PVC, PP, PE and a wide array of standard acoustic pipes.
- Acoustic pipes tested with insulation and sound decoupling
PRODUCT INFORMATION

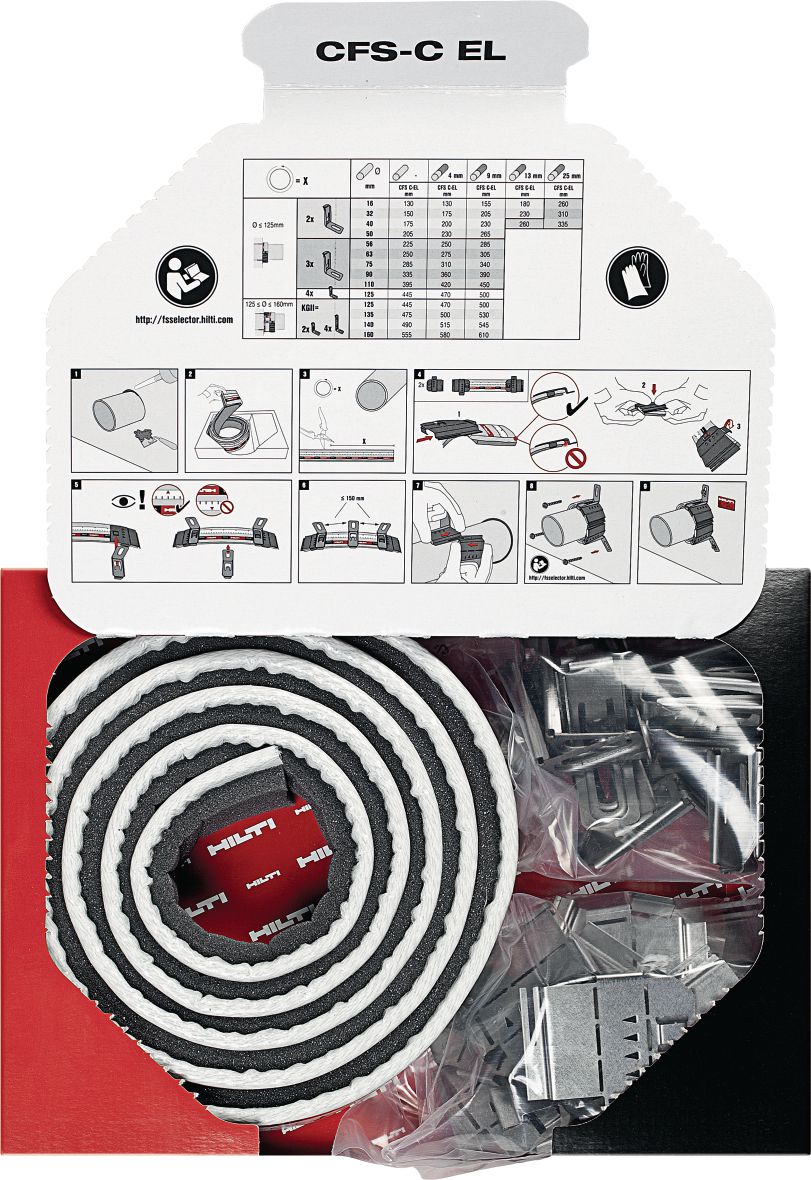

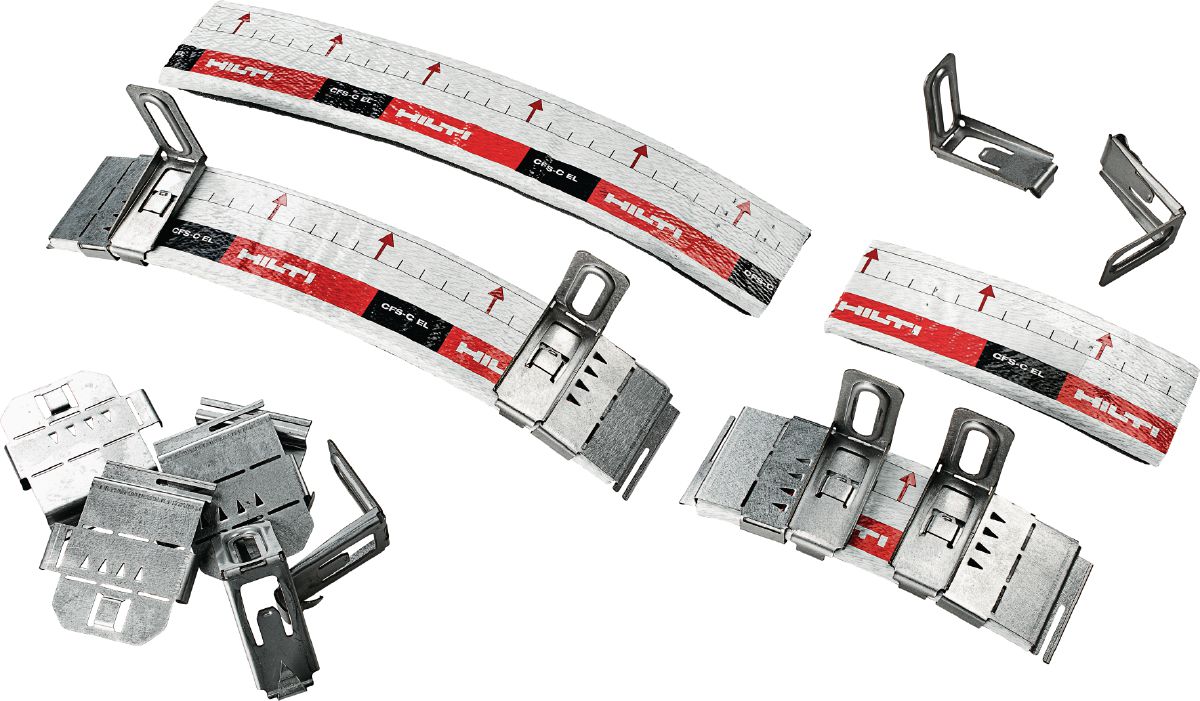

Firestop collar endless CFS-C EL
- Item Number: 2075120
- # of items in Package: 1
TECHNICAL DATA
- Dimensions (LxWxH) : 2580 x 52 x 5.6 mm
- Approvals :ETA-14/0085
- Base materials : Drywall, Concrete (aerated), Concrete, Masonry, Shaft wall
- LEED VOC :11 g/l
- Pipe diameter - range : 16 - 160 mm
- Length : 2580 mm
- Height :6 mm
- Product class : Ultimate
- Application temperature range : -5 - 50 °C
- Temperature resistance range : -30 - 80 °C
- Application : Other, Combustible pipes
