FEATURES & APPLICATIONS
Features
- Versatile – single cables, bundles, trays, trunking and mixed penetrations (metal and plastic pipes)
- Future-proof – re-penetrable to allow future cable capacity increases
- Easily shaped during curing phase – leftovers can be cut and reused
- Single-sided installation possible
- Simpler – no additional sealing or backfilling material needed
Applications

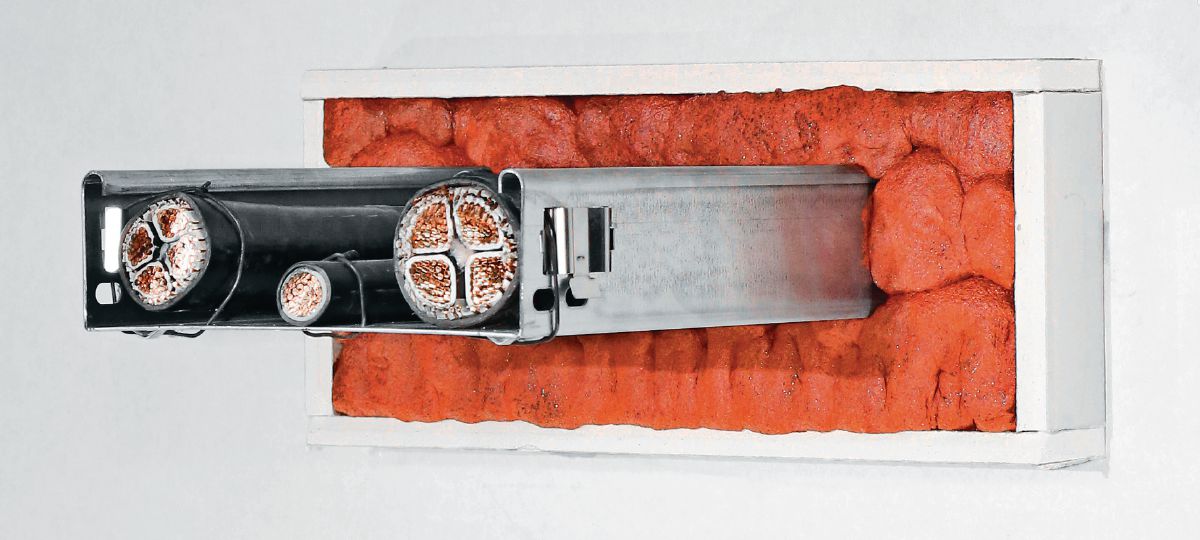

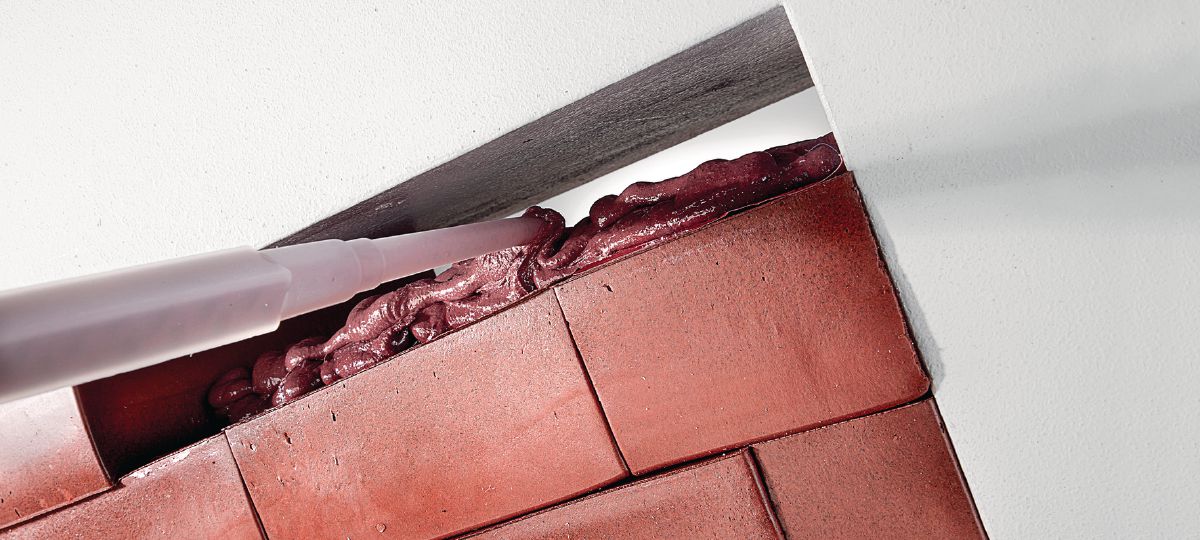

- Electrical: Cable, cable bundles, cable trays and cable trunkings. Mixed penetrations. Repenetration of single cables. Combi approvals with CFS-BL blocks especially for large openings or special segment applications (telecom, industrial)
- Mechanical: Non combustible (metal) pipes with mineral wool / non flammable insulation. Small combustible (plastic) pipes. No smoke/gastight additional sealing and no backing material required.
- Can be used for LAR applications
- Combustable pipes up to 110 mm, with firesetop collar
- Conduits and conduit bundles
PRODUCT INFORMATION

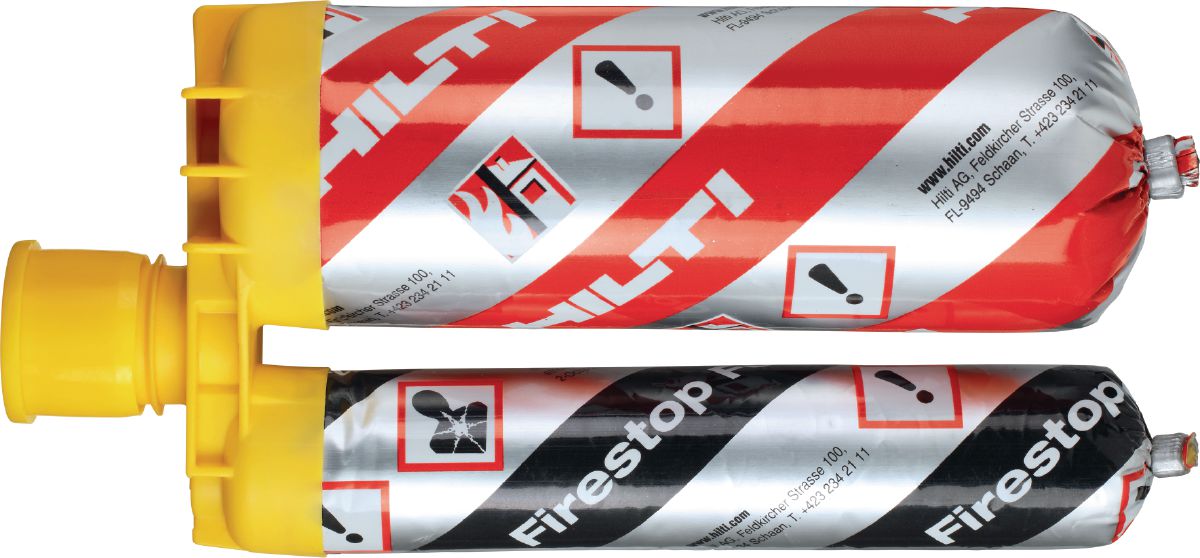

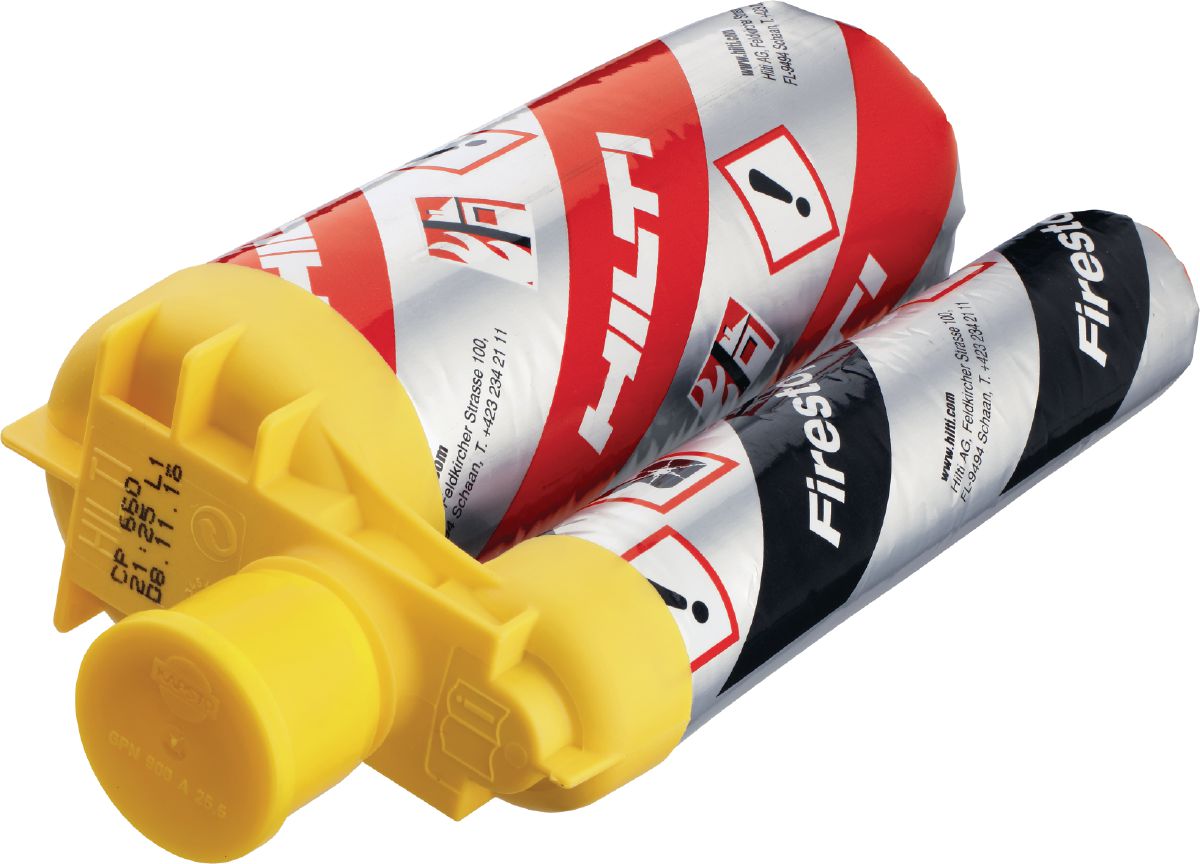

Firestop foam CP 660 INT
- Item Number: 203517
- # of items in Package: 1
TECHNICAL DATA
- Approx. cure time : 10 min 1
- Application temperature range :50 - 95 °F
- Color : Red
- Content per can/cartridge : 325 ml
- Chemical basis : Two component polyurethane foam
- Foam Yield (up to) : 128 in³

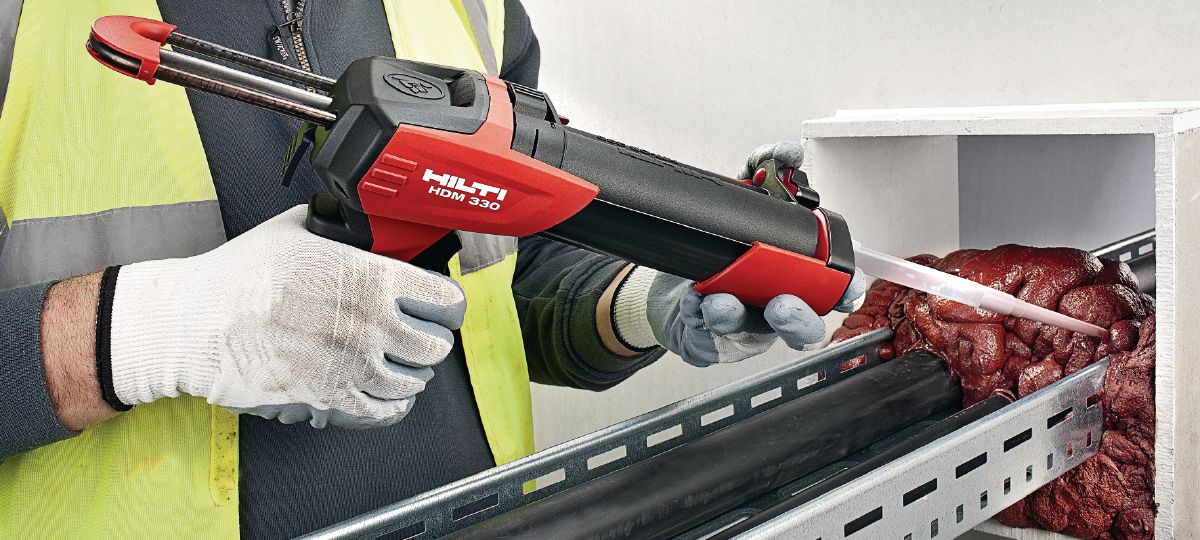

- Required dispenser :HDM 330, HDE 500, HDM 500
- LEED VOC :26 g/l
- Storage and transportation temperature range :40 - 77 °F
- Temperature resistance range : -22 - 140 °F
