FEATURES & APPLICATIONS
Features
- Upgraded ergonomics with large baseplate – this lighter and more compact D-handle jig saw improves your manoeuvrability, stability and cut precision
- 850W motor – delivers the cutting power you need to slice through tougher boards and metal
- Keyless blade change – minimise your downtime while replacing jig saw blades
- Virtually dust-free sawing – this jig saw has a dust blower and extraction adapter, keeping your cutting line clear
- Speed dial and adjustable pendulum stroke – the operator has precise control over how fast the orbital jig saw cuts and how clean the final result needs to be
Applications
- Trimming or cutting wood and plasterboard to size with minimal airborne sawdust when using DRS
- Interior finishing – especially sawing plasterboard or wood-based internal cladding (horizontal or vertical cuts)
- Cutting wood board up to 150 mm thick

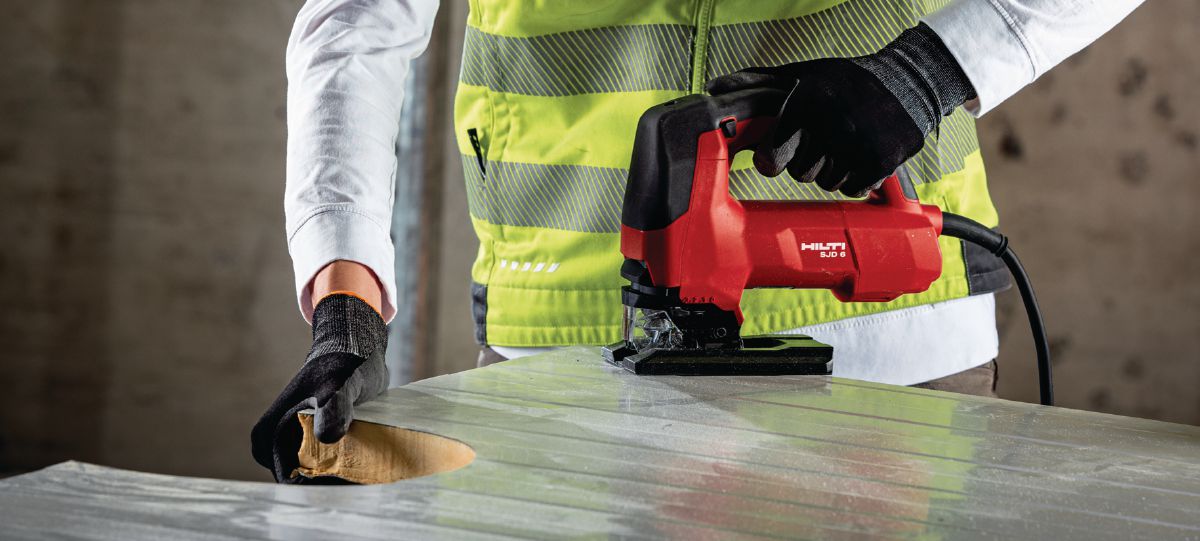

- Cutting metal sheet up to 10 mm thick
- Cutting tiles and plastic pipes
PRODUCT INFORMATION
Orbital jig saw SJD 6 220-240V box
- Item Number: 2132196
- # of items in Package: 1
TECHNICAL DATA
- Rated input power :850 W
- Handle :Hoop grip
- Weight according EPTA Procedure 01/2003 without battery : 2.4 kg
- Base material : Aluminium, Drywall, Gypsum board, Hardwood (beech, oak etc.), Non-ferrous metal, Plastic, Plywood, Wood, Wood composites, Tiles
- Stroke rate : 3000 strokes/minute
- Max. bevel angle : 45 °
- A-weighted emission sound pressure level : 93 dB (A)
- Triaxial vibration value for cutting board (ah,B) :9.7 m/s²
- Uncertainty (K) for triaxial vibration value for cutting board (ah,B) : 1.5 m/s² 3
- Triaxial vibration value for cutting sheet metal (ah,M) : 8.0 m/s² 4
- Uncertainty (K) for triaxial vibration value for sawing in metal (ah) : 1.5 m/s²
