FEATURES & APPLICATIONS
Features
- Sturdy wet/dry dust extractor – built to handle dust extraction and clean-ups in the toughest jobsite conditions
- Designed for agility – compact and light enough to move easily around all construction sites
- Automatic filter cleaning – adaptive filter cleaning maintains consistent suction performance and activates only when necessary, helping reduce noise and work interruptions
- Increased versatility – simply attach your VC 20L-X vacuum top to a VC continuous bag system for more capacity and faster bag swaps to match your application
- Easy organisation and transport – keep your gear stored with built-in accessories, including bungee cords for hose and power cable storage and an optional soft bag for spare filters and more
Applications
- Dust extraction from grinding, cutting, slitting, drilling and dry-coring tools
- Wet and dry cleaning
- Removing slurry during wet coring applications
- L-Class vacuum – for capturing 99% of dust with a grain size under two microns
PRODUCT INFORMATION

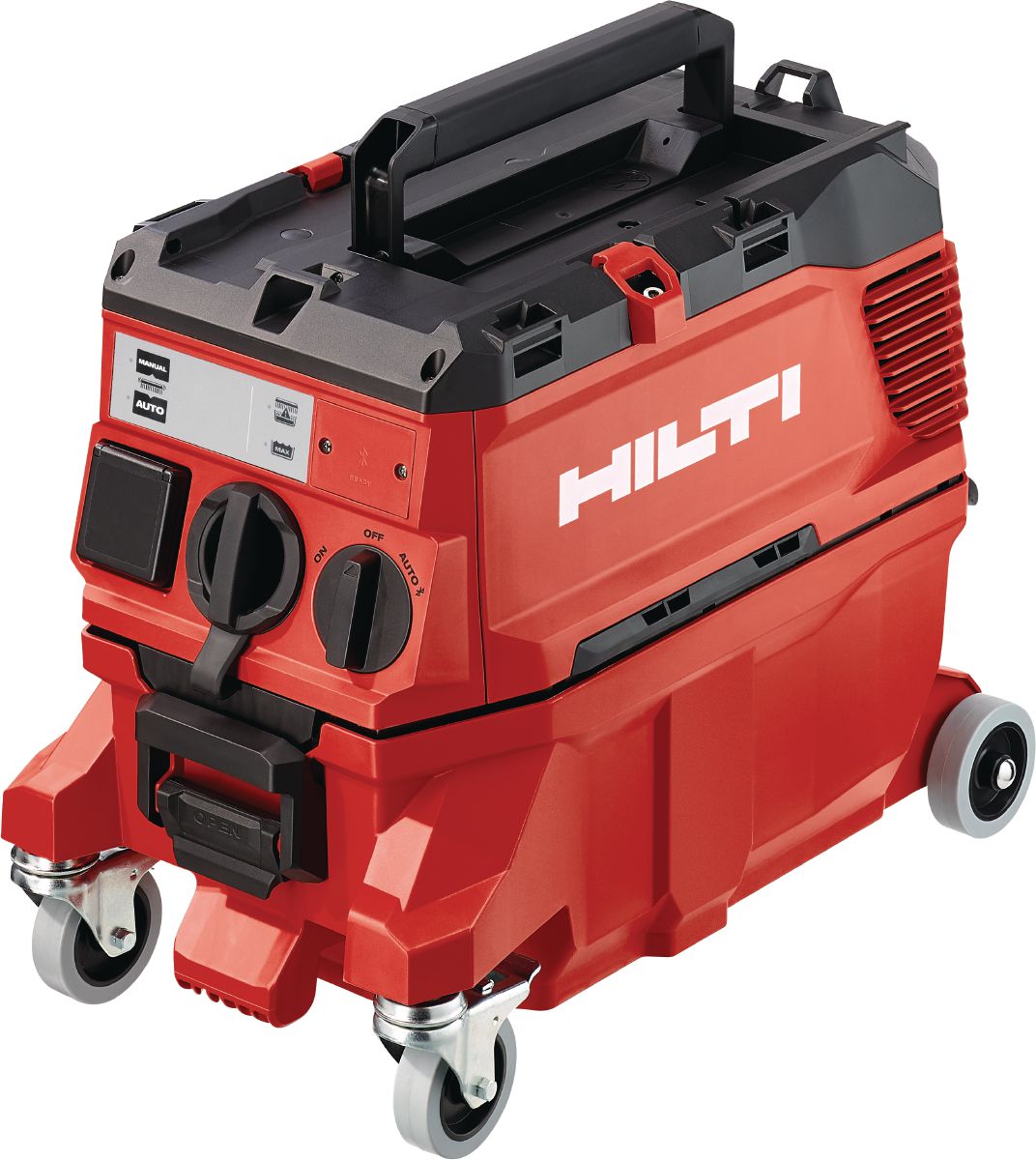

Dust extr. VC 20LX 220-240V
- Item Number: 22411680
- # of items in Package: 1
TECHNICAL DATA
- Air Flow Motor Alone : 74 l/s
- Air Flow at Hose End : 39 l/s
- Max. Vacuum : 24.5 kPa
- Water capacity : 9 l
- Dust capacity : 15 kg
- Dust class : L
- Application : Cleaning, Drilling and breaking, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting
- Integrated power socket : Yes
- Max socket output power : 1200 W
- Power source : Corded
- Rated input power : 1200 W
- Suction capacity : 74 l/s
- Supply cord length : 7000 mm
- Dimensions (LxWxH) : 530 x 290 x 415 mm
- Weight according to EPTA Procedure 01/2003 : 11 kg
