FEATURES & APPLICATIONS
Features
- Galvanised nail for fastening to concrete or steel
- Higher application limits, higher ultimate tensile loads
- Available in lengths up to 72 mm
- Fully-knurled point for increased performance on high-strength steel and hard concrete
- Strips of 10 collated nails – for extremely high productivity and easier fastener loading
Applications
- Fastening to concrete or steel

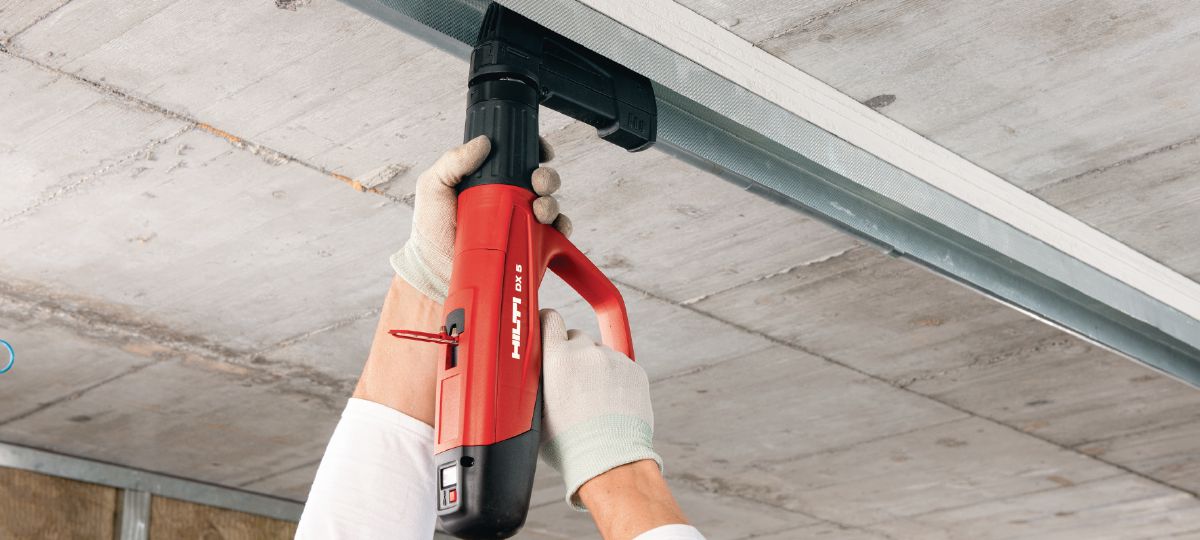

- Fastening metal track for plasterboard/dry lining to concrete
- Fastening wall ties
- Fastening wood to concrete

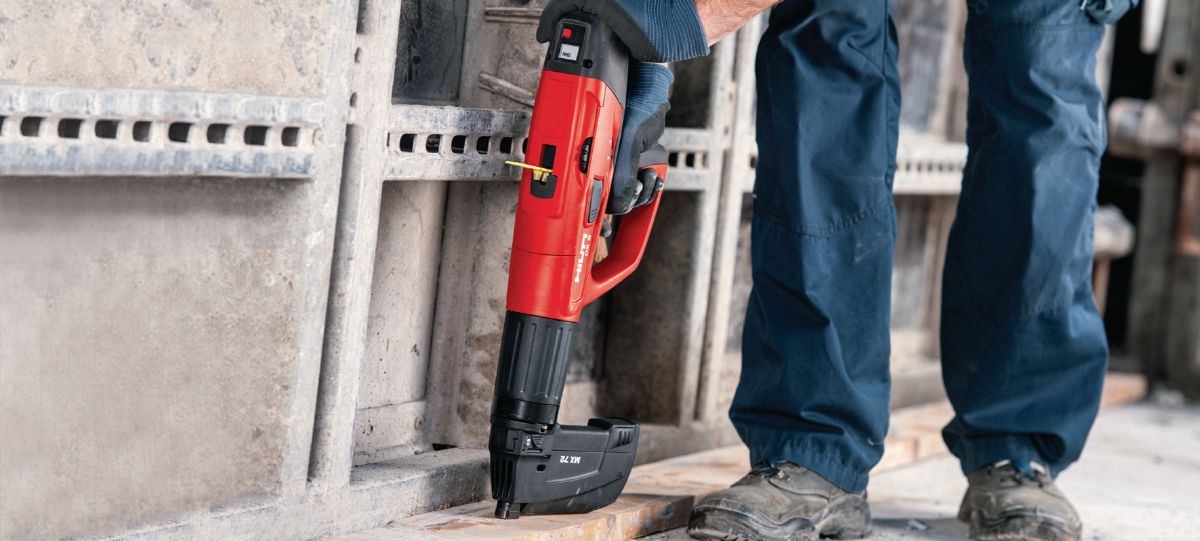

- Setting up formwork and safety barriers
PRODUCT INFORMATION
Universal nail X-U 27 MX
- Item Number: 237347
- # of items in Package: 1
TECHNICAL DATA
- Base materials : Concrete (hard), Concrete (soft), Masonry, Steel
- Minimum thickness of base material (concrete) : 80 mm
- Minimum thickness of base material (steel) : 6 mm
- Corrosion protection : Galvanised zinc coated <20 µm
- Environmental conditions : Dry indoor
- Material : Carbon steel
- Fastener shank diameter : 4 mm
- Point type : Ballistic point, knurled
- Approvals : COLA, DIBt, IBMB, ICC-ES, LR
- For use with (tools) : DX 351 MX 27, DX 351 MX 32, DX 460 MX, DX 5 MX
- Product class : Premium
